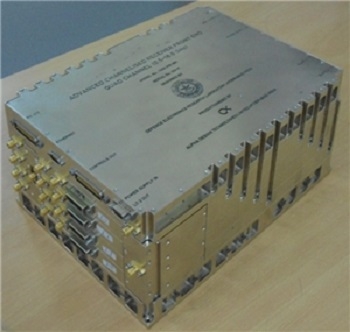

Advanced Channelized Receiver (Quad Channel)

Advanced Channelized Receiver (Quad Channel)

  • Compact and complex unit for high sensitivity DF measurement.
  • Down converted IF output of 1 GHz ± 250 MHz or 160 ± 20 MHz, selectable.
  • Activity detection  for  500 MHz,  1.5 GHz, 4 GHz & 0.5-18 GHz bandwidths.
  • Selection of  channel  based on activity detection or by  external  command.

Product Specifications

general parameters:
Frequency Range: 0.5 to 18 GHz
RF Gain: 40 dB
Dynamic Range: 70 dB
