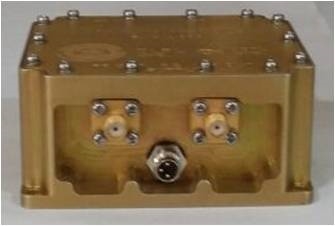

Interface Unit for VU & MW Monitoring

Interface Unit for VU & MW Monitoring

  • https://d2f6h2rm95zg9t.cloudfront.net/99190295/19_636185213388163464_300.jpg
  • https://d2f6h2rm95zg9t.cloudfront.net/99190295/19-1_636185213385038380_300.jpg
  • https://d2f6h2rm95zg9t.cloudfront.net/99190295/19-2_636185213381132438_300.jpg
  • Developed for DLRL Aerostat based ESM project.
  • Covers  frequency range from 20 MHz to 18 GHz

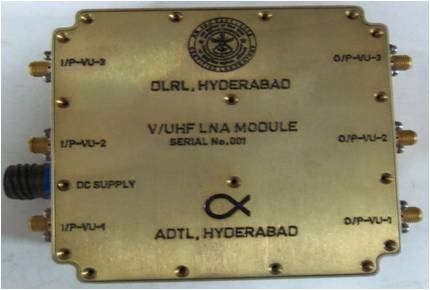

  • Consists of three units; 3-Ch V/UHF LNA module,  2-Ch MW LNA module  and V/UHF & MW Antenna Distribution Unit.
  • ADU routes 20-3000 MHz V/UHF signals in three bands to eight outputs in non-blocking way, ie, any input to any output
  • ADU also routes two MW signals in 1-18 GHz, to the MW output
